2018年2月25日日曜日

si5351a3.h

Arduinoとstm32f103c8両方で使えるヘッダーファイル(ライブラリ構造してないので)としてsi5351a2.hを作ったが、自作仲間のJA2NKD松浦OMから水晶容量の指定、出力指定の要望があった。そこでsi5351a2.hを見直すことにし、si5351a3.hにした。
サンプルスケッチを含め、si53513.hはDownload siteにアップしてある。

si5351a3.h変更内容

1.水晶の容量指定
 setupに次の行を追加してください。

    si5351aXtalCp(_8pF);     // 8pF set

 0pFの指定は _0pF、6pFの指定は _6pF、 8pFの指定は _8pF、 10pFの指定
 は _10pFと指定してください。

2.出力強度指定
 si5351aの出力を次の様に、周波数と出力レベルを書いてください。

      si5351aSetFrequency(freq,_8mA);  // Strength 8mA set

 または、
      si5351aSetFrequency2(freq,_2mA);  // Strength 2mA set

 などのCLK0とCLK2で別の出力レベル設定も出来ます。
  2mAの指定は _2mA、 4mAの指定は _4mA、 6mAの指定は _6mA、 8mAの
 指定は _8mAと指定して下さい。

使い方

si5351a3.h(ヘッダファイル)のスケッチへの組込みは、次の2通りがある。

1.スケッチと同じフォルダにsi5351a3.hを保存
 この時のinclude記述 #include "si5351a3.h"



スケッチのタブと別のタブが出来て、タブを切替える事で編集ができる。この方法は、ヘッダファイルの完成度が低く編集しながら開発を進める場合便利である。

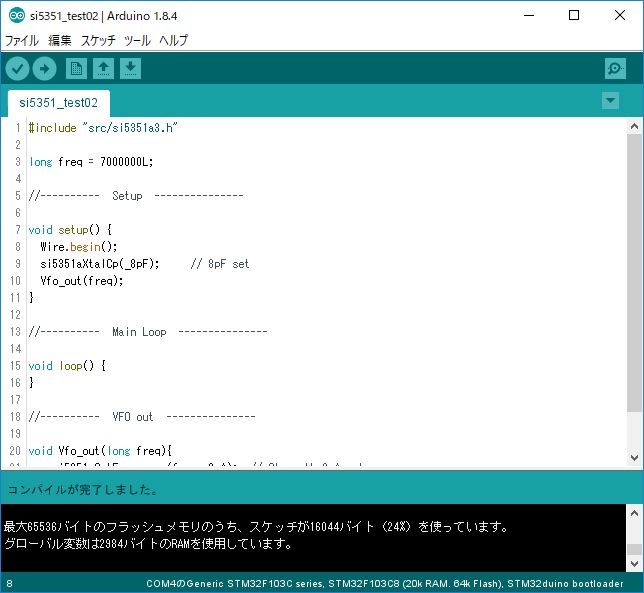

2.スケッチが入っているフォルダにフォルダを作って、si5351a3.hを保存
  この時、スケッチフォルダ内にsrcフォルダを作り、srcフォルダにsi5351a3.hが保存
 して有る場合のinclude記述 #include "src/si5351a3.h"


スケッチのタブのみ現れるので、スッキリする。ヘッダファイルの完成度が高い場合、こちらの方法が良い。

















サンプルスケッチ

#include "si5351a3.h"

long freq = 7000000L;
//----------  Setup  ---------------

void setup() {
  Wire.begin();
  si5351aXtalCp(_8pF);     // 8pF set
  Vfo_out(freq);
}

//----------  Main Loop  ---------------

void loop() {
}

//----------  VFO out  ---------------

void Vfo_out(long freq){
    si5351aSetFrequency(freq,_8mA);  // Strength 8mA set
}

si5351a3.hの内容


////////////////////////////////////////////////////////////////////////

// Author: Hans Summers, 2015
// Website: http://www.hanssummers.com
//
// A very very simple Si5351a demonstration
// using the Si5351a module kit http://www.hanssummers.com/synth
// Please also refer to SiLabs AN619 which describes all the registers to use
//----------------------------------------------------------------------
// Modifications: JA2GQP,2017/5/20
//     1)Output is CLK0 and CLK2.
//     2)Arduino and stm32duino Operable.
//     3)Storingth lebel. 2018/2/25
//     4)Xtal CP. 2018/2/25
////////////////////////////////////////////////////////////////////////

#include <Wire.h>

#define CLK0_CTRL   16               // Register definitions
#define CLK1_CTRL   17
#define CLK2_CTRL   18
#define MSNA_ADDR   26
#define MSNB_ADDR   34
#define MS0_ADDR    42
#define MS1_ADDR    50
#define MS2_ADDR    58
#define PLL_RESET   177
#define XTAL_LOAD_C 183

#define R_DIV_1      0b00000000     // R-division ratio definitions
#define R_DIV_2      0b00010000
#define R_DIV_4      0b00100000
#define R_DIV_8      0b00110000
#define R_DIV_16     0b01000000
#define R_DIV_32     0b01010000
#define R_DIV_64     0b01100000
#define R_DIV_128    0b01110000

#define XTAL_CL    0b00010010
#define _0pF         0b00000000     // 0pF
#define _6pF         0b01000000     // 6pF
#define _8pF         0b10000000     // 8pF
#define _10pF        0b11000000     // 10pF

#define Si5351A_ADDR 0x60

#define _2mA         0b00000000     // 2mA
#define _4mA         0b00000001     // 4mA
#define _6mA         0b00000010     // 6mA
#define _8mA         0b00000011     // 8mA
#define CLK_SRC_PLL_A 0b00000000
#define CLK_SRC_PLL_B 0b00100000

#define XTAL_FREQ     25000400    // Crystal frequency for Hans' board

////////////////////////////////////////////////////////////////////////
// I2C write
////////////////////////////////////////////////////////////////////////

void Si5351_write(byte Reg , byte Data){
  Wire.beginTransmission(Si5351A_ADDR);
  Wire.write(Reg);
  Wire.write(Data);
  Wire.endTransmission();
}

////////////////////////////////////////////////////////////////////////
// Set up specified PLL with mult, num and denom
// mult is 15..90
// num is 0..1,048,575 (0xFFFFF)
// denom is 0..1,048,575 (0xFFFFF)
///////////////////////////////////////////////////////////////////////

void setupPLL(uint8_t pll, uint8_t mult, uint32_t num, uint32_t denom){
  uint32_t P1;                            // PLL config register P1
  uint32_t P2;                            // PLL config register P2
  uint32_t P3;                            // PLL config register P3

  P1 = (uint32_t)(128 * ((float)num / (float)denom));
  P1 = (uint32_t)(128 * (uint32_t)(mult) + P1 - 512);
  P2 = (uint32_t)(128 * ((float)num / (float)denom));
  P2 = (uint32_t)(128 * num - denom * P2);
  P3 = denom;

  Si5351_write(pll + 0, (P3 & 0x0000FF00) >> 8);
  Si5351_write(pll + 1, (P3 & 0x000000FF));
  Si5351_write(pll + 2, (P1 & 0x00030000) >> 16);
  Si5351_write(pll + 3, (P1 & 0x0000FF00) >> 8);
  Si5351_write(pll + 4, (P1 & 0x000000FF));
  Si5351_write(pll + 5, ((P3 & 0x000F0000) >> 12) | ((P2 & 0x000F0000) >> 16));
  Si5351_write(pll + 6, (P2 & 0x0000FF00) >> 8);
  Si5351_write(pll + 7, (P2 & 0x000000FF));
}

////////////////////////////////////////////////////////////////////////
// Set up MultiSynth with integer divider and R divider
// R divider is the bit value which is OR'ed onto the appropriate
// register, it is a #define in si5351a.h
////////////////////////////////////////////////////////////////////////

void setupMultisynth(uint8_t synth, uint32_t divider, uint8_t rDiv){
  uint32_t P1;                          // Synth config register P1
  uint32_t P2;                          // Synth config register P2
  uint32_t P3;                          // Synth config register P3

  P1 = 128 * divider - 512;
  P2 = 0;                               // P2 = 0, P3 = 1 forces an integer value for the divider
  P3 = 1;

  Si5351_write(synth + 0, (P3 & 0x0000FF00) >> 8);
  Si5351_write(synth + 1, (P3 & 0x000000FF));
  Si5351_write(synth + 2, ((P1 & 0x00030000) >> 16) | rDiv);
  Si5351_write(synth + 3, (P1 & 0x0000FF00) >> 8);
  Si5351_write(synth + 4, (P1 & 0x000000FF));
  Si5351_write(synth + 5, ((P3 & 0x000F0000) >> 12) | ((P2 & 0x000F0000) >> 16));
  Si5351_write(synth + 6, (P2 & 0x0000FF00) >> 8);
  Si5351_write(synth + 7, (P2 & 0x000000FF));
}

////////////////////////////////////////////////////////////////////////
// Switches off Si5351a output
// Example: si5351aOutputOff(CLK0_CTRL);
// will switch off output CLK0
////////////////////////////////////////////////////////////////////////

void si5351aOutputOff(uint8_t clk){
  Si5351_write(clk, 0x80);              // Refer to SiLabs AN619 to see
                                        //bit values - 0x80 turns off the output stage
}

////////////////////////////////////////////////////////////////////////
// Xtal cp
// Example: si5351aXtalCp(_8pF);
////////////////////////////////////////////////////////////////////////

void si5351aXtalCp(uint8_t cp){
  Si5351_write(XTAL_LOAD_C, XTAL_CL | cp);
}

////////////////////////////////////////////////////////////////////////
// Set CLK0 output ON and to the specified frequency
// Frequency is in the range 1MHz to 150MHz
// Example: si5351aSetFrequency(10000000,_8mA);
// will set output CLK0 to 10MHz
//
// This example sets up PLL A
// and MultiSynth 0
// and produces the output on CLK0
////////////////////////////////////////////////////////////////////////

void si5351aSetFrequency(uint32_t frequency,uint8_t mA){
  uint32_t pllFreq;
  uint32_t xtalFreq = XTAL_FREQ;
  uint32_t l;
  float f;
  uint8_t mult;
  uint32_t num;
  uint32_t denom;
  uint32_t divider;

  divider = 900000000 / frequency;        // Calculate the division ratio. 900,000,000 is the maximum internal
                                          // PLL frequency: 900MHz
  if (divider % 2) divider--;             // Ensure an even integer
                                          //division ratio

  pllFreq = divider * frequency;          // Calculate the pllFrequency:
                                          //the divider * desired output frequency

  mult = pllFreq / xtalFreq;              // Determine the multiplier to
                                          //get to the required pllFrequency
  l = pllFreq % xtalFreq;                 // It has three parts:
  f = l;                                  // mult is an integer that must be in the range 15..90
  f *= 1048575;                           // num and denom are the fractional parts, the numerator and denominator
  f /= xtalFreq;                          // each is 20 bits (range 0..1048575)
  num = f;                                // the actual multiplier is mult + num / denom
  denom = 1048575;                        // For simplicity we set the denominator to the maximum 1048575

                                          // Set up PLL A with the calculated  multiplication ratio
  setupPLL(MSNA_ADDR, mult, num, denom);
                                          // Set up MultiSynth divider 0, with the calculated divider.
                                          // The final R division stage can divide by a power of two, from 1..128.
                                          // reprented by constants SI_R_DIV1 to SI_R_DIV128 (see si5351a.h header file)
                                          // If you want to output frequencies below 1MHz, you have to use the
                                          // final R division stage
  setupMultisynth(MS0_ADDR, divider, R_DIV_1);
                                          // Reset the PLL. This causes a glitch in the output. For small changes to
                                          // the parameters, you don't need to reset the PLL, and there is no glitch
//  Si5351_write(PLL_RESET, 0x20);
                                          // Finally switch on the CLK0 output (0x4F)
                                          // and set the MultiSynth0 input to be PLL A
  Si5351_write(CLK0_CTRL, 0x4C | mA | CLK_SRC_PLL_A);    // Strength lebel set
//  Si5351_write(CLK0_CTRL, 0x4C | CLK_SRC_PLL_A);    // Strength 2mA
}

////////////////////////////////////////////////////////////////////////
// Set CLK2 output ON and to the specified frequency
// Frequency is in the range 1MHz to 150MHz
// Example: si5351aSetFrequency2(10000000,_8mA);
// will set output CLK0 to 10MHz
//
// This example sets up PLL B
// and MultiSynth 1
// and produces the output on CLK2
////////////////////////////////////////////////////////////////////////

void si5351aSetFrequency2(uint32_t frequency,uint8_t mA){
  uint32_t pllFreq;
  uint32_t xtalFreq = XTAL_FREQ;
  uint32_t l;
  float f;
  uint8_t mult;
  uint32_t num;
  uint32_t denom;
  uint32_t divider;

  divider = 900000000 / frequency;        // Calculate the division ratio. 900,000,000 is the maximum internal
                                          // PLL frequency: 900MHz
  if (divider % 2) divider--;             // Ensure an even integer
                                          //division ratio

  pllFreq = divider * frequency;          // Calculate the pllFrequency:
                                          //the divider * desired output frequency

  mult = pllFreq / xtalFreq;              // Determine the multiplier to
                                          //get to the required pllFrequency
  l = pllFreq % xtalFreq;                 // It has three parts:
  f = l;                                  // mult is an integer that must be in the range 15..90
  f *= 1048575;                           // num and denom are the fractional parts, the numerator and denominator
  f /= xtalFreq;                          // each is 20 bits (range 0..1048575)
  num = f;                                // the actual multiplier is mult + num / denom
  denom = 1048575;                        // For simplicity we set the denominator to the maximum 1048575

                                          // Set up PLL B with the calculated  multiplication ratio
  setupPLL(MSNB_ADDR, mult, num, denom);
                                          // Set up MultiSynth divider 0, with the calculated divider.
                                          // The final R division stage can divide by a power of two, from 1..128.
                                          // reprented by constants SI_R_DIV1 to SI_R_DIV128 (see si5351a.h header file)
                                          // If you want to output frequencies below 1MHz, you have to use the
                                          // final R division stage
  setupMultisynth(MS2_ADDR, divider, R_DIV_1);
                                          // Reset the PLL. This causes a glitch in the output. For small changes to
                                          // the parameters, you don't need to reset the PLL, and there is no glitch
//  Si5351_write(PLL_RESET, 0x80);
                                          // Finally switch on the CLK1 output
                                          // and set the MultiSynth0 input to be PLL B
  Si5351_write(CLK2_CTRL, 0x6C | mA | CLK_SRC_PLL_B);    // Strength lebel set
//  Si5351_write(CLK2_CTRL, 0x6C | CLK_SRC_PLL_B);    // Strength 2mA
}
